KANS 3기 2주차 두번째

Flannel CNI

K8S 버전은 1.30.4 : CNI 는 flannel(v0.25.6)



쿠버네티스 네트워크 및 Flannel CNI 소개 - 링크





kind & Flannel 배포 - Docs Blog Github

GitHub - flannel-io/cni-plugin

#
cat <<EOF> kind-cni.yaml
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  labels:
    mynode: control-plane
  extraPortMappings:
  - containerPort: 30000
    hostPort: 30000
  - containerPort: 30001
    hostPort: 30001
  - containerPort: 30002
    hostPort: 30002
  kubeadmConfigPatches:
  - |
    kind: ClusterConfiguration
    controllerManager:
      extraArgs:
        bind-address: 0.0.0.0
    etcd:
      local:
        extraArgs:
          listen-metrics-urls: http://0.0.0.0:2381
    scheduler:
      extraArgs:
        bind-address: 0.0.0.0
  - |
    kind: KubeProxyConfiguration
    metricsBindAddress: 0.0.0.0
- role: worker
  labels:
    mynode: worker
- role: worker
  labels:
    mynode: worker2
networking:
  disableDefaultCNI: true
EOF
kind create cluster --config kind-cni.yaml --name myk8s --image kindest/node:v1.30.4

# 배포 확인
kind get clusters
kind get nodes --name myk8s
kubectl cluster-info

# 노드 확인 : CRI
kubectl get nodes -o wide

# 노드 라벨 확인
kubectl get nodes myk8s-control-plane -o jsonpath={.metadata.labels} | jq
...
"mynode": "control-plane",
...

kubectl get nodes myk8s-worker -o jsonpath={.metadata.labels} | jq
kubectl get nodes myk8s-worker2 -o jsonpath={.metadata.labels} | jq

# 컨테이너 확인 : 컨테이너 갯수, 컨테이너 이름 확인
docker ps
docker port myk8s-control-plane
docker port myk8s-worker
docker port myk8s-worker2

# 컨테이너 내부 정보 확인
docker exec -it myk8s-control-plane ip -br -c -4 addr
docker exec -it myk8s-worker  ip -br -c -4 addr
docker exec -it myk8s-worker2  ip -br -c -4 addr

#
docker exec -it myk8s-control-plane sh -c 'apt update && apt install tree jq psmisc lsof wget bridge-utils tcpdump iputils-ping htop git nano -y'
docker exec -it myk8s-worker  sh -c 'apt update && apt install tree jq psmisc lsof wget bridge-utils tcpdump iputils-ping -y'
docker exec -it myk8s-worker2 sh -c 'apt update && apt install tree jq psmisc lsof wget bridge-utils tcpdump iputils-ping -y'









bridge 실행파일 생성 후 로컬에 복사 , 혹은 팀 슬랙 채널에 업로드된 파일 다운로드 후 사용 할 것!

#
docker exec -it myk8s-control-plane bash
---------------------------------------
apt install golang -y
git clone https://github.com/containernetworking/plugins
chmod +x build_linux.sh

#
build_linux.sh
Building plugins
  bandwidth
  firewall
  portmap
  sbr
  tuning
  vrf
  bridge
  host-device
  ipvlan
  loopback
  macvlan
  ptp
  vlan
  dhcp
  host-local
  static

exit
---------------------------------------

# 자신의 PC에 복사
docker cp myk8s-control-plane:/opt/cni/bin/bridge .
ls -l bridge





#
watch -d kubectl get pod -A -owide

#
kubectl describe pod -n kube-system -l k8s-app=kube-dns
Events:
  Type     Reason            Age   From               Message
  ----     ------            ----  ----               -------
  Warning  FailedScheduling  57s   default-scheduler  0/1 nodes are available: 1 node(s) had untolerated taint {node.kubernetes.io/not-ready: }. preemption: 0/1 nodes are available: 1 Preemption is not helpful for scheduling.

# Flannel cni 설치
kubectl apply -f https://raw.githubusercontent.com/flannel-io/flannel/master/Documentation/kube-flannel.yml

# namespace 에 pod-security.kubernetes.io/enforce=privileged Label 확인
kubectl get ns --show-labels
NAME                 STATUS   AGE     LABELS
kube-flannel         Active   2m49s   k8s-app=flannel,kubernetes.io/metadata.name=kube-flannel,pod-security.kubernetes.io/enforce=privileged

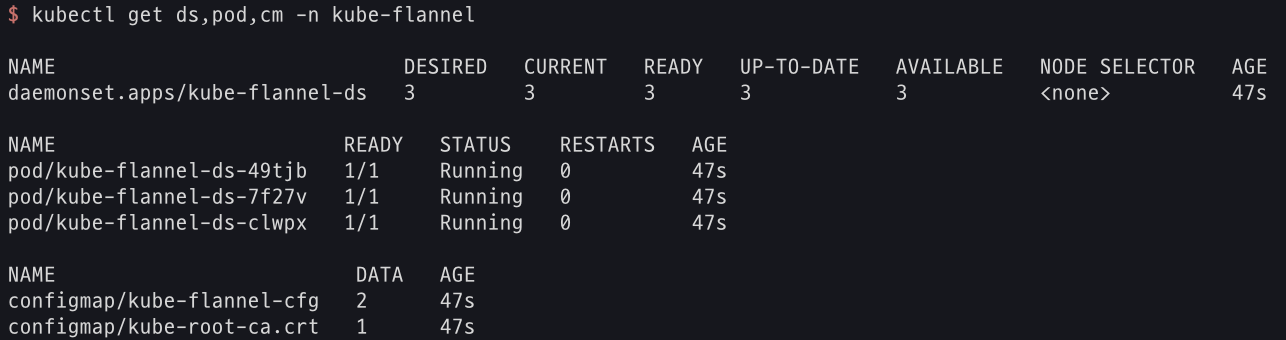

kubectl get ds,pod,cm -n kube-flannel

kubectl describe cm -n kube-flannel kube-flannel-cfg
cni-conf.json:
----
{
  "name": "cbr0",
  "cniVersion": "0.3.1",
  "plugins": [
    {
      "type": "flannel",
      "delegate": {
        "hairpinMode": true,
        "isDefaultGateway": true
      }
    },
    {
      "type": "portmap",
      "capabilities": {
        "portMappings": true
      }
    }
  ]
}

net-conf.json:
----
{
  "Network": "10.244.0.0/16",
  "EnableNFTables": false,
  "Backend": {
    "Type": "vxlan"
  }
}

kubectl describe ds -n kube-flannel kube-flannel-ds
...
    Mounts:
      /etc/cni/net.d from cni (rw)
      /etc/kube-flannel/ from flannel-cfg (rw)
    ...
    Mounts:
      /etc/kube-flannel/ from flannel-cfg (rw)
      /run/flannel from run (rw)
      /run/xtables.lock from xtables-lock (rw)
  Volumes:
   run:
    Type:          HostPath (bare host directory volume)
    Path:          /run/flannel
    HostPathType:
   cni-plugin:
    Type:          HostPath (bare host directory volume)
    Path:          /opt/cni/bin
    HostPathType:
   cni:
    Type:          HostPath (bare host directory volume)
    Path:          /etc/cni/net.d
    HostPathType:
   flannel-cfg:
    Type:      ConfigMap (a volume populated by a ConfigMap)
    Name:      kube-flannel-cfg
    Optional:  false
   xtables-lock:
    Type:               HostPath (bare host directory volume)
    Path:               /run/xtables.lock
    HostPathType:       FileOrCreate
  Priority Class Name:  system-node-critical
...

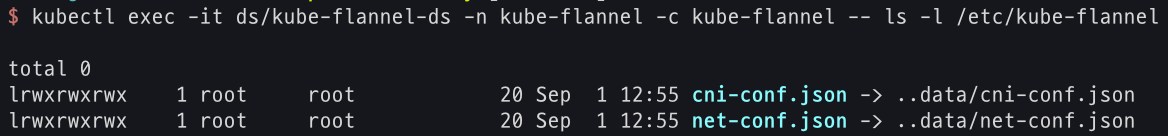

kubectl exec -it ds/kube-flannel-ds -n kube-flannel -c kube-flannel -- ls -l /etc/kube-flannel


# failed to find plugin "bridge" in path [/opt/cni/bin]
kubectl get pod -A -owide
kubectl describe pod -n kube-system -l k8s-app=kube-dns
  Warning  FailedCreatePodSandBox  35s               kubelet            Failed to create pod sandbox: rpc error: code = Unknown desc = failed to setup network for sandbox "786e9caec9c312a0b8af70e14865535575601d024ec02dbb581a1f5ac0b8bb06": plugin type="flannel" failed (add): loadFlannelSubnetEnv failed: open /run/flannel/subnet.env: no such file or directory
  Warning  FailedCreatePodSandBox  23s               kubelet            Failed to create pod sandbox: rpc error: code = Unknown desc = failed to setup network for sandbox "6ccd4607d32cbb95be9ff40b97a436a07e5902e6c24d1e12aa68fefc2f8b548a": plugin type="flannel" failed (add): failed to delegate add: failed to find plugin "bridge" in path [/opt/cni/bin]

#
kubectl get pod -A -owide

#
docker cp bridge myk8s-control-plane:/opt/cni/bin/bridge
docker cp bridge myk8s-worker:/opt/cni/bin/bridge
docker cp bridge myk8s-worker2:/opt/cni/bin/bridge

#
docker exec -it myk8s-control-plane  ls -l /opt/cni/bin/
docker exec -it myk8s-worker  ls -l /opt/cni/bin/
docker exec -it myk8s-worker2 ls -l /opt/cni/bin/
for i in myk8s-control-plane myk8s-worker myk8s-worker2; do echo ">> node $i <<"; docker exec -it $i ls /opt/cni/bin/; echo; done
bridge	flannel  host-local  loopback  portmap	ptp

#
kubectl get pod -A -owide



확인







(참고) kubelet 및 기타 정보

# kubelet config 정보
kubectl describe cm -n kube-system kubelet-config
docker exec -it myk8s-control-plane cat /var/lib/kubelet/config.yaml
...
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
staticPodPath: /etc/kubernetes/manifests
...

#
docker exec -it myk8s-control-plane cat /var/lib/kubelet/kubeadm-flags.env
KUBELET_KUBEADM_ARGS="--container-runtime-endpoint=unix:///run/containerd/containerd.sock --node-ip=172.18.0.2 --node-labels= --pod-infra-container-image=registry.k8s.io/pause:3.9 --provider-id=kind://docker/myk8s/myk8s-control-plane"

for i in myk8s-control-plane myk8s-worker myk8s-worker2; do echo ">> node $i <<"; docker exec -it $i cat /var/lib/kubelet/kubeadm-flags.env; echo; done

#
for i in myk8s-control-plane myk8s-worker myk8s-worker2; do echo ">> node $i <<"; docker exec -it $i ls /etc/kubernetes/manifests; echo; done
>> node myk8s-control-plane <<
etcd.yaml  kube-apiserver.yaml	kube-controller-manager.yaml  kube-scheduler.yaml

>> node myk8s-worker <<

>> node myk8s-worker2 <<

#
kubectl describe pod -n kube-system kube-apiserver-myk8s-control-plane
kubectl describe pod -n kube-system kube-controller-manager-myk8s-control-plane
kubectl describe pod -n kube-system kube-scheduler-myk8s-control-plane

#
for i in myk8s-control-plane myk8s-worker myk8s-worker2; do echo ">> node $i <<"; docker exec -it $i pstree -aT; echo; done
for i in myk8s-control-plane myk8s-worker myk8s-worker2; do echo ">> node $i <<"; docker exec -it $i pstree -atl; echo; done

#
docker exec -it myk8s-control-plane  systemctl status kubelet -l --no-pager
docker exec -it myk8s-worker  systemctl status kubelet -l --no-pager
docker exec -it myk8s-worker2 systemctl status kubelet -l --no-pager







Flannel 정보 확인

#
kubectl get ds,pod,cm -n kube-flannel -owide
kubectl describe cm -n kube-flannel kube-flannel-cfg

# iptables 정보 확인
for i in filter nat mangle raw ; do echo ">> IPTables Type : $i <<"; docker exec -it myk8s-control-plane  iptables -t $i -S ; echo; done
for i in filter nat mangle raw ; do echo ">> IPTables Type : $i <<"; docker exec -it myk8s-worker  iptables -t $i -S ; echo; done
for i in filter nat mangle raw ; do echo ">> IPTables Type : $i <<"; docker exec -it myk8s-worker2 iptables -t $i -S ; echo; done


# flannel 정보 확인 : 대역, MTU
for i in myk8s-control-plane myk8s-worker myk8s-worker2; do echo ">> node $i <<"; docker exec -it $i cat /run/flannel/subnet.env ; echo; done
>> node myk8s-control-plane <<
FLANNEL_NETWORK=10.244.0.0/16
FLANNEL_SUBNET=10.244.0.1/24 # 해당 노드에 파드가 배포 시 할당 할 수 있는 네트워크 대역
FLANNEL_MTU=65485 # MTU 지정
FLANNEL_IPMASQ=true # 파드가 외부(인터넷) 통신 시 해당 노드의 마스커레이딩을 사용
...

# 노드마다 할당된 dedicated subnet (podCIDR) 확인
kubectl get nodes -o jsonpath='{.items[*].spec.podCIDR}' ;echo

# 노드 정보 중 flannel 관련 정보 확인 : VXLAN 모드 정보와, VTEP 정보(노드 IP, VtepMac) 를 확인
kubectl describe node | grep -A3 Annotations

# 각 노드(?) 마다 bash 진입 후 아래 기본 정보 확인 : 먼저 worker 부터 bash 진입 후 확인하자
docker exec -it myk8s-worker        bash
docker exec -it myk8s-worker2       bash
docker exec -it myk8s-control-plane bash
----------------------------------------
# 호스트 네트워크 NS와 flannel, kube-proxy 컨테이너의 네트워크 NS 비교 : 파드의 IP와 호스트(서버)의 IP를 비교해보자!
lsns -p 1
lsns -p $(pgrep flanneld)
lsns -p $(pgrep kube-proxy)


# 기본 네트워크 정보 확인

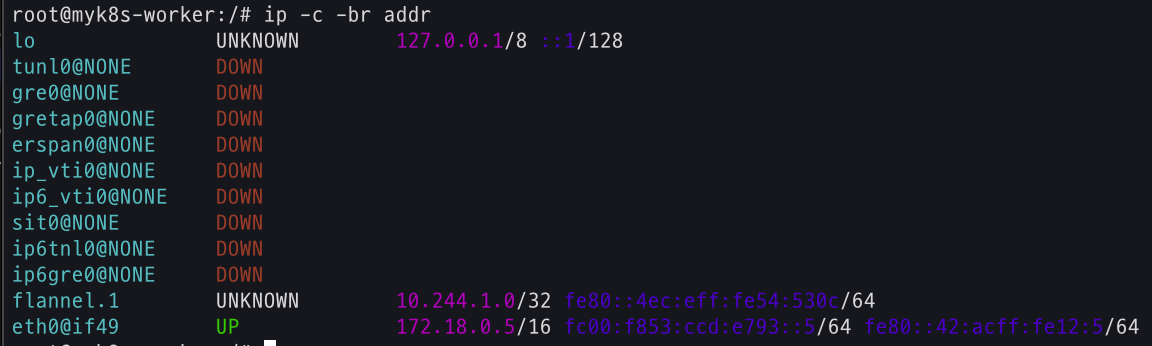

ip -c -br addr
ip -c link | grep -E 'flannel|cni|veth' -A1
ip -c addr
ip -c -d addr show cni0     # 네트워크 네임스페이스 격리 파드가 1개 이상 배치 시 확인됨

ip -c -d addr show flannel.1
	5: flannel.1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UNKNOWN group default
    link/ether 1e:81:fc:d5:8a:42 brd ff:ff:ff:ff:ff:ff promiscuity 0 minmtu 68 maxmtu 65535
    vxlan id 1 local 192.168.100.10 dev enp0s8 srcport 0 0 dstport 8472 nolearning ttl auto ageing 300 udpcsum noudp6zerocsumtx noudp6zerocsumrx numtxqueues 1 numrxqueues 1 gso_max_size 65536 gso_max_segs 65535
    inet 172.16.0.0/32 brd 172.16.0.0 scope global flannel.1

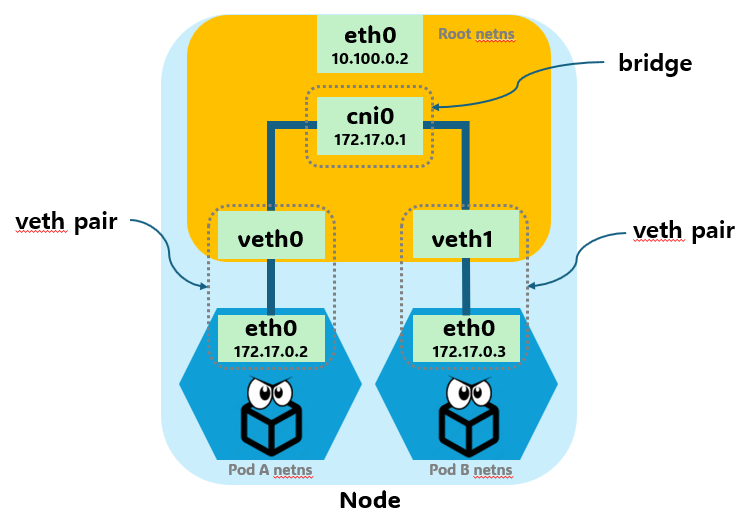

brctl show
bridge name	bridge id		STP enabled	interfaces
cni0		8000.663bf746b6a8	no		vethbce1591c
							vethc17ba51b
							vethe6540260

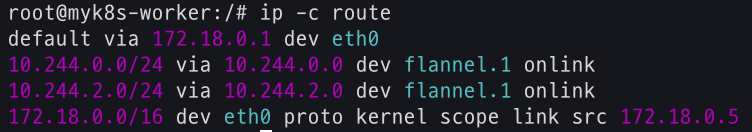

# 라우팅 정보 확인 : 다른 노드의 파드 대역(podCIDR)의 라우팅 정보가 업데이트되어 있음을 확인
ip -c route
default via 172.18.0.1 dev eth0
10.244.0.0/24 via 10.244.0.0 dev flannel.1 onlink
10.244.1.0/24 dev cni0 proto kernel scope link src 10.244.1.1
10.244.2.0/24 via 10.244.2.0 dev flannel.1 onlink
172.18.0.0/16 dev eth0 proto kernel scope link src 172.18.0.3

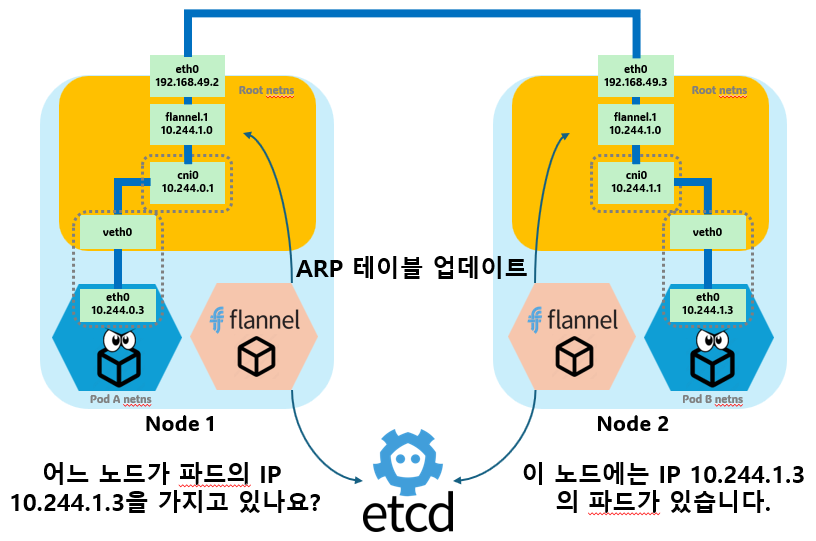

# flannel.1 인터페이스를 통한 ARP 테이블 정보 확인 : 다른 노드의 flannel.1 IP와 MAC 정보를 확인
ip -c neigh show dev flannel.1

# 브리지 fdb 정보에서 해당 MAC 주소와 통신 시 각 노드의 enp0s8
bridge fdb show dev flannel.1

# 다른 노드의 flannel.1 인터페이스로 ping 통신 : VXLAN 오버레이를 통해서 통신
ping -c 1 10.244.0.0
ping -c 1 10.244.1.0
ping -c 1 10.244.2.0

# iptables 필터 테이블 정보 확인 : 파드의 10.244.0.0/16 대역 끼리는 모든 노드에서 전달이 가능
iptables -t filter -S | grep 10.244.0.0

# iptables NAT 테이블 정보 확인 : 10.244.0.0/16 대역 끼리 통신은 마스커레이딩 없이 통신을 하며,
# 10.244.0.0/16 대역에서 동일 대역(10.244.0.0/16)과 멀티캐스트 대역(224.0.0.0/4) 를 제외한 나머지 (외부) 통신 시에는 마스커레이딩을 수행
iptables -t nat -S | grep 'flanneld masq' | grep -v '! -s'

----------------------------------------



ip확인











파드 2개 생성

# [터미널1,2] 워커 노드1,2 - 모니터링
docker exec -it myk8s-worker
docker exec -it myk8s-worker2
-----------------------------
watch -d "ip link | egrep 'cni|veth' ;echo; brctl show cni0"
-----------------------------

# [터미널3] cat & here document 명령 조합으로 즉석(?) 리소스 생성
cat <<EOF | kubectl create -f -
apiVersion: v1
kind: Pod
metadata:
  name: pod-1
  labels:
    app: pod
spec:
  nodeSelector:
    kubernetes.io/hostname: myk8s-worker
  containers:
  - name: netshoot-pod
    image: nicolaka/netshoot
    command: ["tail"]
    args: ["-f", "/dev/null"]
  terminationGracePeriodSeconds: 0
---
apiVersion: v1
kind: Pod
metadata:
  name: pod-2
  labels:
    app: pod
spec:
  nodeSelector:
    kubernetes.io/hostname: myk8s-worker2
  containers:
  - name: netshoot-pod
    image: nicolaka/netshoot
    command: ["tail"]
    args: ["-f", "/dev/null"]
  terminationGracePeriodSeconds: 0
EOF

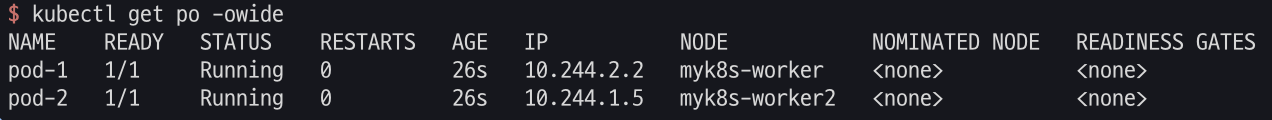

# 파드 확인 : IP 확인
kubectl get pod -o wide

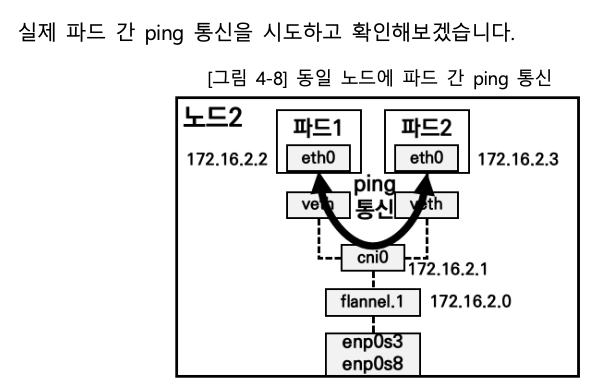

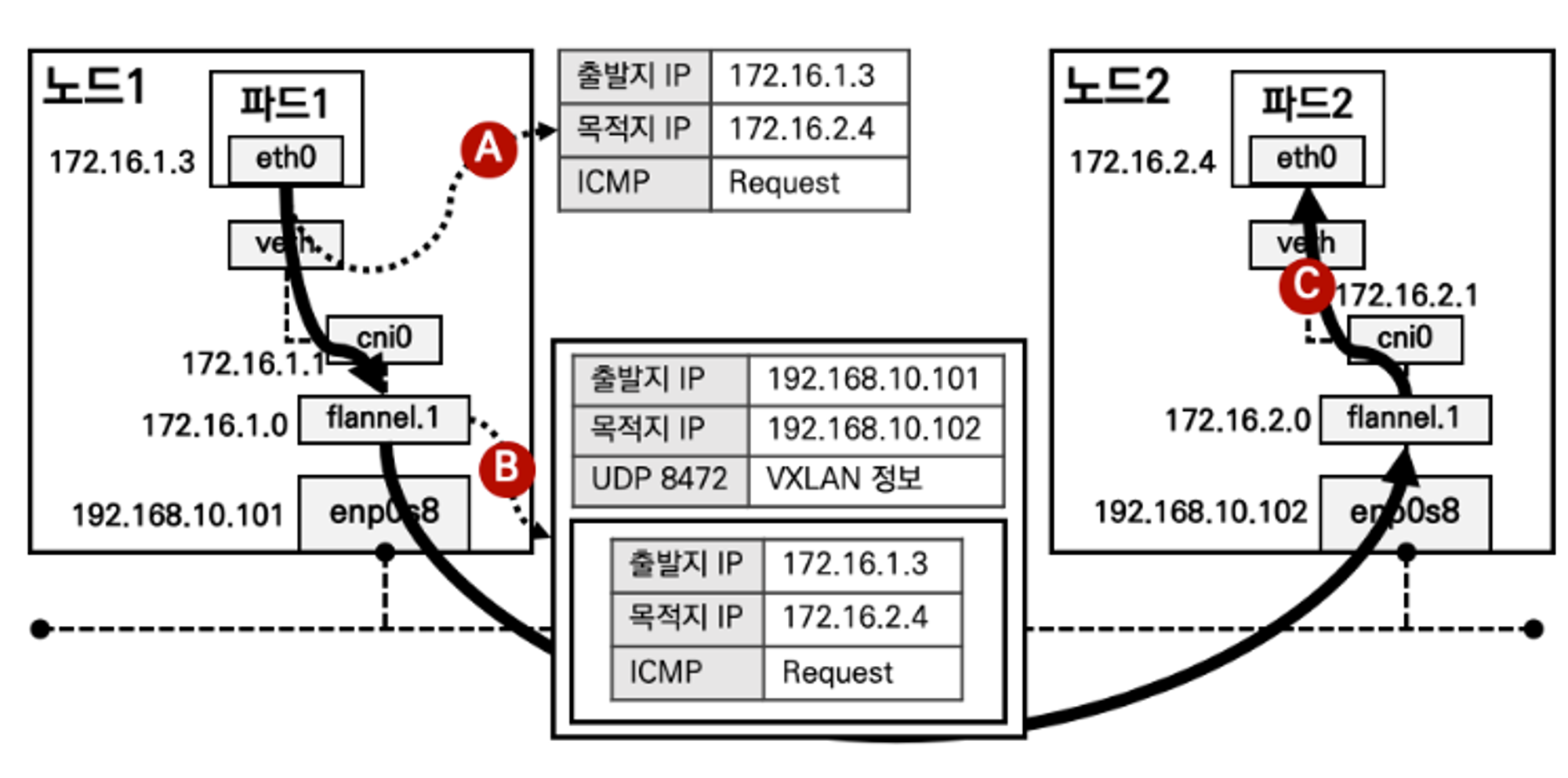

통신 흐름 이해 : 동일 노드 , 다른 노드 간





노드마다 파드를 만들고 통신

https://kschoi728.tistory.com/249

https://kschoi728.tistory.com/248



파드 Shell 접속 후 확인 & 패킷 캡처

kubectl exec -it pod-1 -- zsh
-----------------------------
ip -c addr show eth0


# GW IP는 어떤 인터페이스인가? (1) flannel.1 (2) cni0

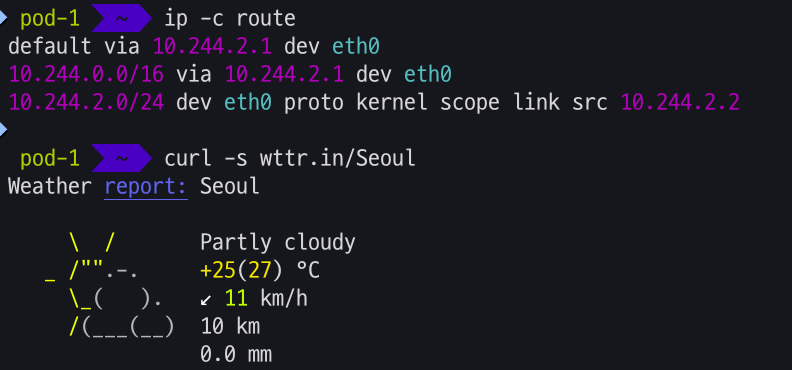

ip -c route
route -n
ping -c 1 <GW IP>
ping -c 1 <pod-2 IP>  # 다른 노드에 배포된 파드 통신 확인
ping -c 8.8.8.8       # 외부 인터넷 IP   접속 확인
curl -s wttr.in/Seoul # 외부 인터넷 도메인 접속 확인
ip -c neigh
exit
-----------------------------



캡처 확인

# [터미널1,2] 워커 노드1,2
docker exec -it myk8s-worker
docker exec -it myk8s-worker2
-----------------------------
tcpdump -i cni0 -nn icmp
tcpdump -i flannel.1 -nn icmp
tcpdump -i eth0 -nn icmp
tcpdump -i eth0 -nn udp port 8472 -w /root/vxlan.pcap
# CTRL+C 취소 후 확인 : ls -l /root/vxlan.pcap

conntrack -L | grep -i icmp
-----------------------------

# [터미널3]
docker cp myk8s-worker:/root/vxlan.pcap .
wireshark vxlan.pcap

Wireshark 에서 vxlan 기본 udp port 를 4789 를 사용합니다. Flannel 은 8472 를 사용하니 udp port 정보를 맞춰주시면 됩니다





실습 도움 툴 설치 : kube-ops-view , metrics-server , prometheus-stack ← 이후 스터디에서도 자주 사용 예정

- kube-ops-view

# helm show values geek-cookbook/kube-ops-view
helm repo add geek-cookbook https://geek-cookbook.github.io/charts/
helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set service.main.type=NodePort,service.main.ports.http.nodePort=30000 --set env.TZ="Asia/Seoul" --namespace kube-system

# 설치 확인
kubectl get deploy,pod,svc,ep -n kube-system -l app.kubernetes.io/instance=kube-ops-view

# myk8s-control-plane 노드?에 배치
kubectl get nodes myk8s-control-plane -o jsonpath={.metadata.labels} | jq
kubectl describe node myk8s-control-plane | grep Taints
kubectl -n kube-system get deploy kube-ops-view -o yaml | k neat
kubectl -n kube-system edit deploy kube-ops-view
---
spec:
  ...
  template:
    ...
    spec:
      nodeSelector:
        mynode: control-plane
      tolerations:
      - key: "node-role.kubernetes.io/control-plane"
        operator: "Equal"
        effect: "NoSchedule"
---

kubectl -n kube-system get pod -o wide -l app.kubernetes.io/instance=kube-ops-view

# kube-ops-view 접속 URL 확인 (1.5 , 2 배율)
echo -e "KUBE-OPS-VIEW URL = http://localhost:30000/#scale=1.5"
echo -e "KUBE-OPS-VIEW URL = http://localhost:30000/#scale=2"


# (참고) 삭제
helm uninstall -n kube-system kube-ops-view





metrics-server

# metrics-server
wget https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml -O metric-server.yaml

# 아래 명령어는 macOS zsh 에서 sed 표현식이 조금 달라서 그런지 적용 안됨, yaml 파일 직접 수정 : - --kubelet-insecure-tls 추가
sed -i '' -r -e "/- --secure-port=10250/a\        - --kubelet-insecure-tls" metric-server.yaml
kubectl apply -f metric-server.yaml
kubectl get all -n kube-system -l k8s-app=metrics-server
kubectl get apiservices |egrep '(AVAILABLE|metrics)'

# 확인
kubectl top node
kubectl top pod -A --sort-by='cpu'
kubectl top pod -A --sort-by='memory'

# (참고) 삭제
kubectl delete -f metric-server.yaml





prometheus-stack

#
helm repo add prometheus-community https://prometheus-community.github.io/helm-charts

# 파라미터 파일 생성
cat <<EOT > monitor-values.yaml
prometheus:
  service:
    type: NodePort
    nodePort: 30001

  prometheusSpec:
    podMonitorSelectorNilUsesHelmValues: false
    serviceMonitorSelectorNilUsesHelmValues: false
    nodeSelector:
      mynode: control-plane
    tolerations:
    - key: "node-role.kubernetes.io/control-plane"
      operator: "Equal"
      effect: "NoSchedule"


grafana:
  defaultDashboardsTimezone: Asia/Seoul
  adminPassword: kans1234

  service:
    type: NodePort
    nodePort: 30002
  nodeSelector:
    mynode: control-plane
  tolerations:
  - key: "node-role.kubernetes.io/control-plane"
    operator: "Equal"
    effect: "NoSchedule"

defaultRules:
  create: false
alertmanager:
  enabled: false

EOT

# 배포
kubectl create ns monitoring
helm install kube-prometheus-stack prometheus-community/kube-prometheus-stack --version 62.3.0 -f monitor-values.yaml --namespace monitoring

# 확인
helm list -n monitoring

# Grafana 접속 계정 : admin / kans1234
echo -e "Prometheus URL = http://localhost:30001"
echo -e "Grafana URL = http://localhost:30002"


# (참고) helm 삭제
helm uninstall -n monitoring kube-prometheus-stack





Prometheus Target connection refused 관련 정상 동작 설정 : kind k8s yaml 파일에 이미 적용되어 있음

 - kube-controller-manager , kube-scheduler , etcd , kube-proxy

# Prometheus Target connection refused 관련 정상 동작 설정 : kube-proxy
kubectl edit cm -n kube-system kube-proxy
...
metricsBindAddress: "0.0.0.0:10249" ## 추가
...
kubectl rollout restart daemonset -n kube-system kube-proxy

# Prometheus Target connection refused 관련 정상 동작 설정 : kube-controller-manager , kube-scheduler , etcd
docker exec -it myk8s-control-plane bash
----------------------------------------
cat /etc/kubernetes/manifests/kube-controller-manager.yaml | grep bind-address
sed -i "s/bind-address=127.0.0.1/bind-address=0.0.0.0/g" /etc/kubernetes/manifests/kube-controller-manager.yaml

cat /etc/kubernetes/manifests/kube-scheduler.yaml | grep bind-address
sed -i "s/bind-address=127.0.0.1/bind-address=0.0.0.0/g" /etc/kubernetes/manifests/kube-scheduler.yaml

cat /etc/kubernetes/manifests/etcd.yaml | grep 127.0.0.1:2381
sed -i "s/127.0.0.1:2381/0.0.0.0:2381/g" /etc/kubernetes/manifests/etcd.yaml
----------------------------------------





설치 후 iptables 확인

# iptables 정보 확인
for i in filter nat mangle raw ; do echo ">> IPTables Type : $i <<"; docker exec -it myk8s-control-plane  iptables -t $i -S ; echo; done
for i in filter nat mangle raw ; do echo ">> IPTables Type : $i <<"; docker exec -it myk8s-worker  iptables -t $i -S ; echo; done
for i in filter nat mangle raw ; do echo ">> IPTables Type : $i <<"; docker exec -it myk8s-worker2 iptables -t $i -S ; echo; done







[심화] 파드에 IP 할당 되기 까지 (노드에 파드 IP 대역 할당 내용 포함) - 링크

How a Kubernetes Pod Gets an IP Address | Ronak Nathani



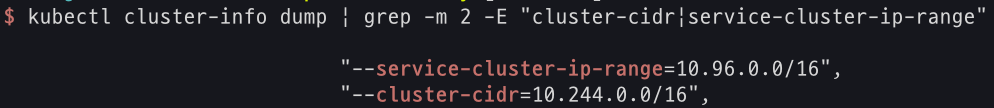

1.K8S 클러스터에서 파드가 사용할 대역을 kubeadm 실행 시 설정 할 수 있다 ⇒ kind 시 기본값으로 pod-network-cidr=10.244.0.0/16 대역을 사용한다 - 링크

# init kubernetes
kubeadm init --pod-network-cidr=10.244.0.0/16 --apiserver-advertise-address=<control-plane 컨테이너의 IP>



2.워커 노드가 마스터 노드에 조인(Join) 시점에 'kube-controller-manager' 파드가 pod-network-cidr 대역 중에서 각 '워커 노드'마다 충돌되지 않는 podCIDR 을 할당한다.

# 파드 확인
kubectl get pod -n kube-system -l component=kube-controller-manager

# kube-controller-manager 파드의 CIDR allocator 동작 로그 확인
kubectl logs -n kube-system -l component=kube-controller-manager | grep CIDR
I1031 15:21:13.763667       1 range_allocator.go:116] No Secondary Service CIDR provided. Skipping filtering out secondary service addresses.
I1031 15:21:13.964982       1 range_allocator.go:172] Starting range CIDR allocator

# 워커 노드마다 할당된 dedicated subnet (podCIDR) 확인
kubectl get nodes -o jsonpath='{.items[*].spec.podCIDR}'



3.이후 파드가 특정 워커 노드에 스케줄(할당) 시 파트에 IP를 할당하는 과정

# 워커노드에서 확인
docker exec -it myk8s-worker bash
---------------------------------
# 기본 flannel 플러그인 정보 확인
cat /etc/cni/net.d/10-flannel.conflist | jq
{
  "name": "cbr0",
  "cniVersion": "0.3.1",
  "plugins": [
    {
      "type": "flannel",
      "delegate": {
        "hairpinMode": true,
        "isDefaultGateway": true
      }
    },
    {
      "type": "portmap",
      "capabilities": {
        "portMappings": true
      }
    }
  ]
}

# 해당 노드의 flannel 적용된 podCIDR 과 그와 network metadata 정보
cat /run/flannel/subnet.env
FLANNEL_NETWORK=10.244.0.0/16
FLANNEL_SUBNET=10.244.1.1/24
FLANNEL_MTU=65485
FLANNEL_IPMASQ=true





실습환경 삭제

kind delete cluster --name myk8s
