CICD 스터디 2주차

이번에는 git action에 대해 알아보겠습니다.

1. 직접 개발 후 실행

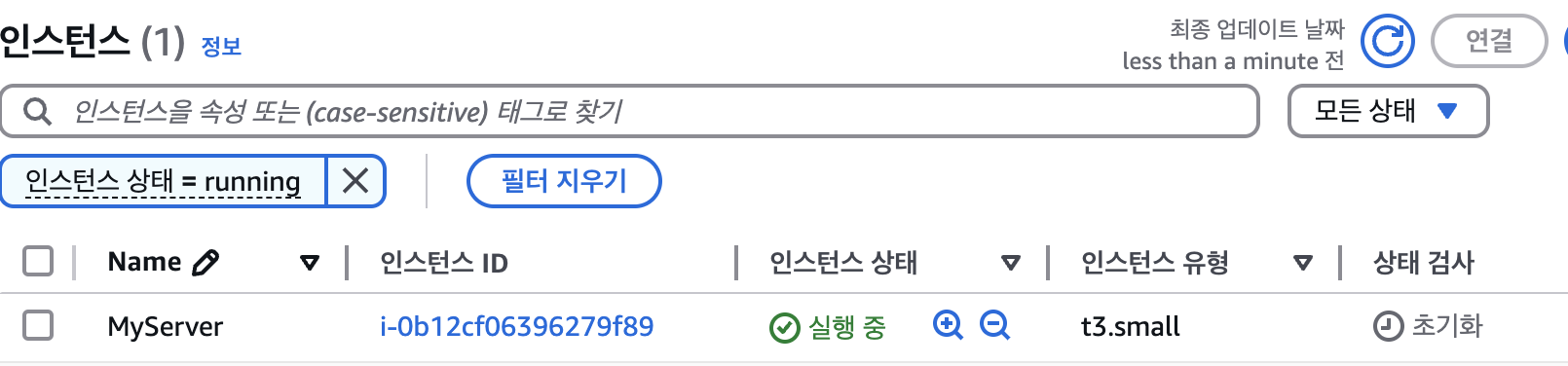

AWS EC2 접속 후 아래 작업 : ssh ubuntu@<EC2 Public IP>

#
python3 -V

#
cat > server.py <<EOF
from http.server import ThreadingHTTPServer, BaseHTTPRequestHandler
from datetime import datetime

class RequestHandler(BaseHTTPRequestHandler):
    def do_GET(self):
        self.send_response(200)
        self.send_header('Content-type', 'text/plain')
        self.end_headers()
        now = datetime.now()
        response_string = now.strftime("The time is %-I:%M:%S %p, CloudNeta Study.\n")
        self.wfile.write(bytes(response_string, "utf-8"))

def startServer():
    try:
        server = ThreadingHTTPServer(('', 80), RequestHandler)
        print("Listening on " + ":".join(map(str, server.server_address)))
        server.serve_forever()
    except KeyboardInterrupt:
        server.shutdown()

if __name__== "__main__":
    startServer()
EOF

#

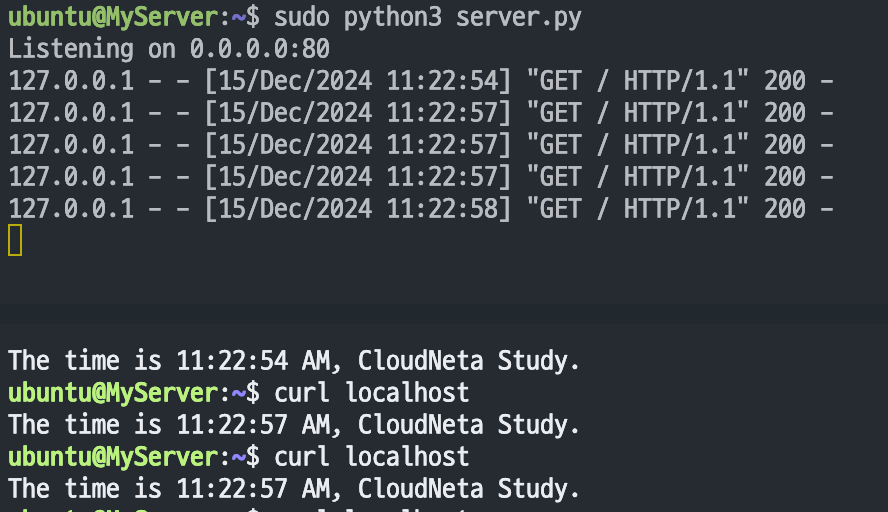

sudo python3 server.py
## 아래 확인 후
CTRL+C 로 실행 취소

# (신규터미널) 서버1 SSH 접속
curl localhost
sudo ss -tnlp
State        Recv-Q       Send-Q             Local Address:Port              Peer Address:Port       Process
LISTEN       0            5                        0.0.0.0:80                     0.0.0.0:*           users:(("python3",pid=3065,fd=3))

Git 작업

서버 1에서 직접 Git 작업

#
GITUSER=<>
GITUSER=gasida

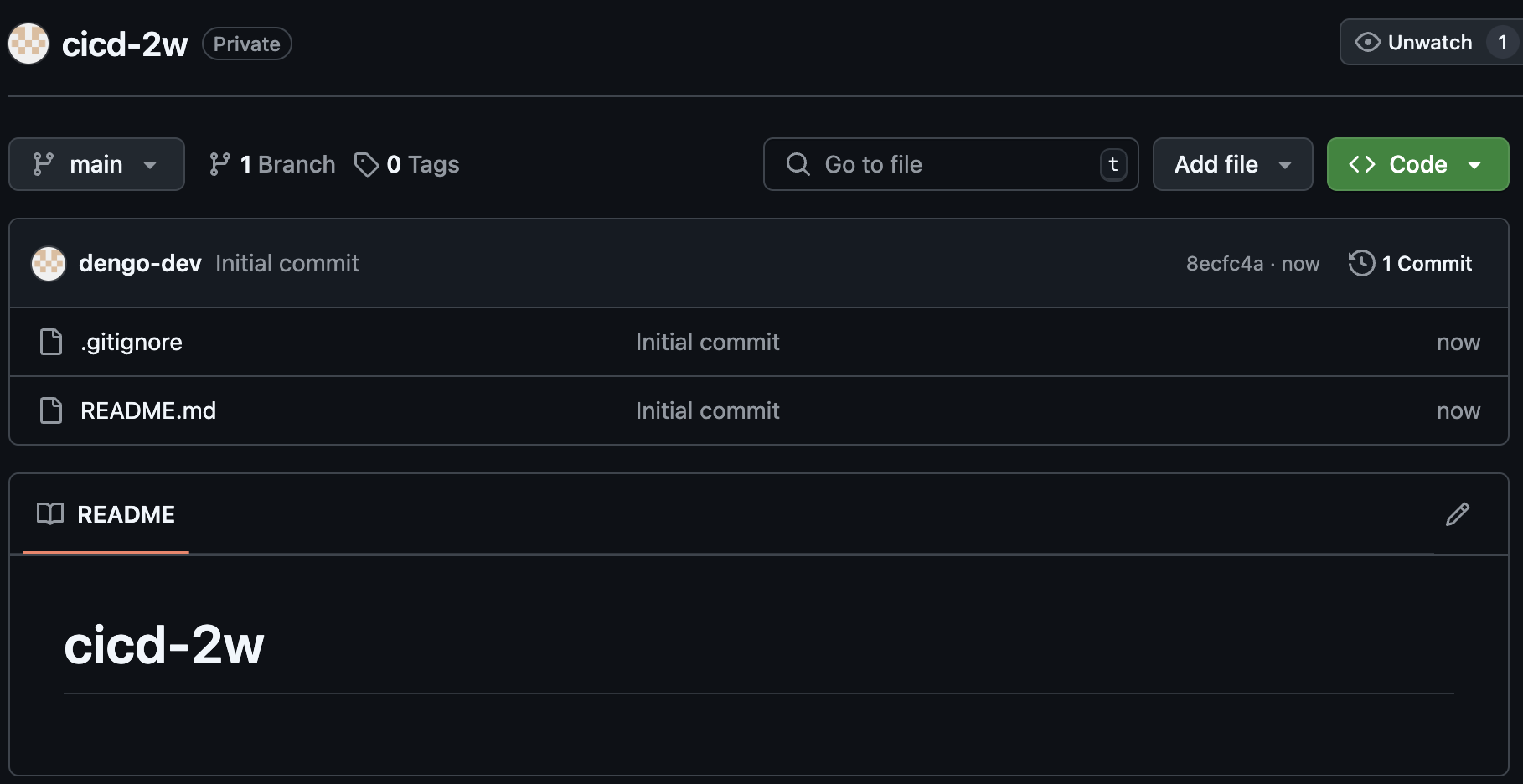

git clone https://github.com/$GITUSER/cicd-2w.git
tree cicd-2w/
cp server.py cicd-2w/
cd cicd-2w/

#
git status
git add .
git commit -m "first commit"

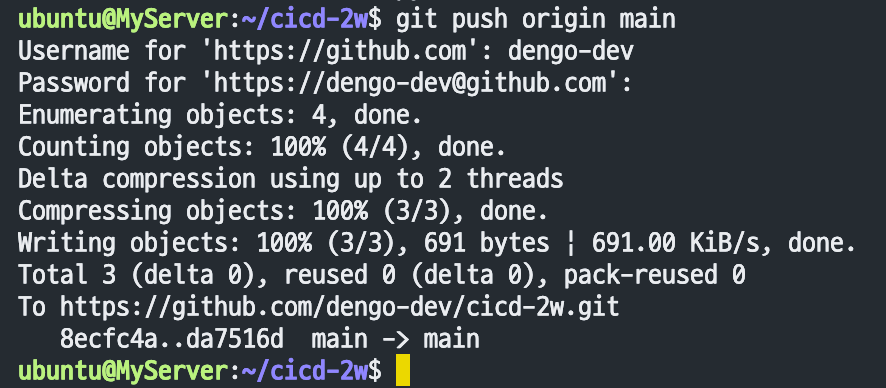

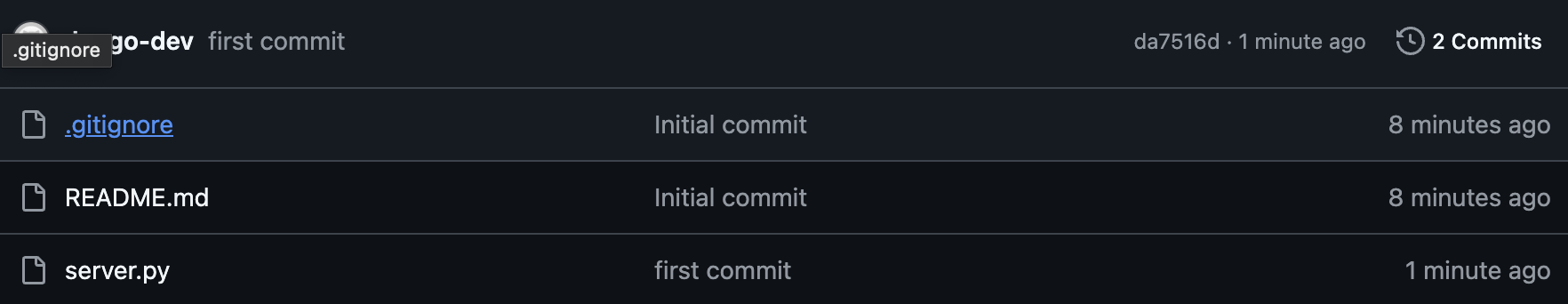

git push origin main
Username for 'https://github.com': <>
Password for 'https://gasida@github.com': <>

서버 실행

#
nohup sudo python3 server.py > server.log 2>&1 &
cat server.log
curl localhost
cat server.log

#
grep log .gitignore
*.log

#
git add .
git commit -m "add log file"
git status

코드 수정 후 재실행

#
sed -i "s/CloudNeta/CICD/g" server.py

# 프로세스 종료
sudo ss -tnlp
sudo fuser -k -n tcp 80
sudo ss -tnlp

# 재실행
nohup sudo python3 server.py > server.log 2>&1 &
curl localhost

GitHub Actions -1-

서버 - Github/Actions - myPC : GitHub Actions 으로 CI/CD 자동화 작업 실행

1.GIt : SSH_PRIVATE_KEY , EC2_PIP

-2개의 값(IP, ssh key) 사용되면, 이 값은 절대 Github Actions 이나 Git Repo 에 노출되면 안되니 secret 사용함

코드 작업

자신의 PC에서 아래 작업

#
git clone https://github.com/gasida/cicd-2w.git
cd cicd-2w

#
mkdir -p .github/workflows/
touch .github/workflows/deploy.yaml

sed -i -e "s/CICD/CICD 2w/g" server.py

.github/workflows/deploy.yaml

name: CICD1
on:
  workflow_dispatch:
  push:
    branches:
      - main

jobs:
  deploy:
    runs-on: ubuntu-latest
    steps:
      - name: Configure the SSH Private Key Secret
        run: |
          mkdir -p ~/.ssh/
          echo "${{ secrets.SSH_PRIVATE_KEY }}" > ~/.ssh/id_rsa
          chmod 600 ~/.ssh/id_rsa

      - name: Set Strict Host Key Checking
        run: echo "StrictHostKeyChecking=no" > ~/.ssh/config

      - name: Git Pull
        run: |
          export MY_HOST="${{ secrets.EC2_PIP }}"
          ssh ubuntu@$MY_HOST << EOF
            cd /home/ubuntu/cicd-2w || exit 1
            git pull origin main || exit 1
          EOF

      - name: Run service
        run: |
          export MY_HOST="${{ secrets.EC2_PIP }}"
          ssh ubuntu@$MY_HOST sudo fuser -k -n tcp 80 || true
          ssh ubuntu@$MY_HOST "nohup sudo -E python3 /home/ubuntu/cicd-2w/server.py > /home/ubuntu/cicd-2w/server.log 2>&1 &"

Git push

git add . && git commit -m "add workflow" && git push origin main

# [서버1]
cd cicd-2w/
grep -i cicd server.py
sudo ps -ef |grep server.py
tail /home/ubuntu/cicd-2w/server.log

확인!

코드 수정 후 동작 확인

sed -i -e "s/CICD 2w/CICD1 End/g" server.py

name: CICD1 End
on:
  workflow_dispatch:
  push:
    branches:
      - main

jobs:
  deployfinal:
    runs-on: ubuntu-latest
    steps:
      - name: Configure the SSH Private Key Secret
        run: |
          mkdir -p ~/.ssh/
          echo "${{ secrets.SSH_PRIVATE_KEY }}" > ~/.ssh/id_rsa
          chmod 600 ~/.ssh/id_rsa

      - name: Set Strict Host Key Checking
        run: echo "StrictHostKeyChecking=no" > ~/.ssh/config

      - name: Git Pull
        run: |
          export MY_HOST="${{ secrets.EC2_PIP }}"
          ssh ubuntu@$MY_HOST << EOF
            cd /home/ubuntu/cicd-2w || exit 1
            git pull origin main || exit 1
          EOF

      - name: Run service
        run: |
          export MY_HOST="${{ secrets.EC2_PIP }}"
          ssh ubuntu@$MY_HOST sudo fuser -k -n tcp 80 || true
          ssh ubuntu@$MY_HOST "nohup sudo -E python3 /home/ubuntu/cicd-2w/server.py > /home/ubuntu/cicd-2w/server.log 2>&1 &"

GitHub Actions -2-

GitHub Actions에서 코드 가져오기
GitHub Actions에서 .gitignore 제외된 민감 파일 내용을 을 안전하게 가져와서 사용하기 ⇒ 매번 수동으로 가져오기 불편하다!
scp로 대상 서버 ec2 에 py 파일 전송
대상 서버 ec2에 기존 서비스 중지하고 다시 실행

name: CICD2
on:
  workflow_dispatch:
  push:
    branches:
      - main

jobs:
  deployfinal:
    runs-on: ubuntu-latest
    steps:
      - name: Test
        run: |
          python -V || true
          python3 -V || true
          which python || true
          which python3 || true
          env

git add . && git commit -m "echo env" && git push origin main

Python 3.10.12
Python 3.10.12
/usr/bin/python
/usr/bin/python3

GitHub Actions에서 .gitignore 제외된 민감 파일 내용을 을 안전하게 가져와서 사용하기 ⇒ 매번 수동으로 가져오기 불편하다!

.gitignore 제외된 민감 파일 내용 사용

#
grep env .gitignore

#

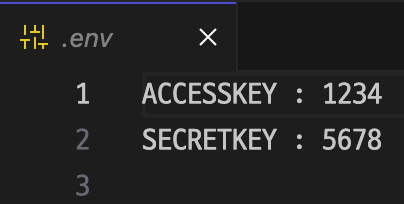

cat > .env <<EOF
ACCESSKEY : 1234
SECRETKEY : 5678
EOF

#
git add .env
git status
rm -f .env

Secret 생성 : MYKEYS ⇒ 아래 SSH for GitHub Actions 에서 env 전달 방식 활용

ACCESSKEY : asdf1234
SECRETKEY : qwer1234

워크플로 설정 후 테스트

name: CICD2
on:
  workflow_dispatch:
  push:
    branches:
      - main

jobs:
  ssh-deploy:
    runs-on: ubuntu-latest
    steps:
      - name: Github Repository Checkout
        uses: actions/checkout@v4

      - name: executing remote ssh commands
        uses: appleboy/ssh-action@v1.2.0
        env:
          AWS_KEYS: ${{ secrets.MYKEYS }}
        with:
          host: ${{ secrets.EC2_PIP }}
          username: ubuntu
          key: ${{ secrets.SSH_PRIVATE_KEY }}
          envs: AWS_KEYS
          script_stop: true
          script: |
             cd /home/ubuntu/cicd-2w
             echo "$AWS_KEYS" > .env

git add . && git commit -m "ssh action test" && git push origin main

확인

# 서버 1
ls -al ~/cicd-2w/
cat ~/cicd-2w/.env

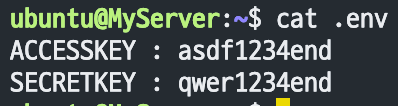

.env 파일 내용 업데이트 방법 : 조금 불편하지만, Github Secret 를 직접 업데이트 후 트리거 하자

ACCESSKEY : asdf1234end
SECRETKEY : qwer1234end

server.py 수정 해두기

response_string = now.strftime("The time is %-I:%M:%S %p, SCP Test\n")

name: CICD2
on:
  workflow_dispatch:
  push:
    branches:
      - main

jobs:
  scp-ssh-deploy:
    runs-on: ubuntu-latest
    steps:
      - name: Github Repository Checkout
        uses: actions/checkout@v4

      - name: executing remote ssh commands
        uses: appleboy/ssh-action@v1.2.0
        env:
          AWS_KEYS: ${{ secrets.MYKEYS }}
        with:
          host: ${{ secrets.EC2_PIP }}
          username: ubuntu
          key: ${{ secrets.SSH_PRIVATE_KEY }}
          envs: AWS_KEYS
          script_stop: true
          script: |
             cd /home/ubuntu/cicd-2w
             echo "$AWS_KEYS" > .env
             sudo fuser -k -n tcp 80 || true

      - name: copy file via ssh
        uses: appleboy/scp-action@v0.1.7
        with:
          host: ${{ secrets.EC2_PIP }}
          username: ubuntu
          key: ${{ secrets.SSH_PRIVATE_KEY }}
          source: server.py
          target: /home/ubuntu/cicd-2w

확인

# 서버 1
ls -al ~/cicd-2w/
cat ~/cicd-2w/server.py | grep SCP

최종 : github action 에서 코드 가져오고 변경된 py 파일을 전송 후 기존 서비스 중지 후 재기동

response_string = now.strftime("The time is %-I:%M:%S %p, CICD2 End\n")

name: CICD2
on:
  workflow_dispatch:
  push:
    branches:
      - main

jobs:
  deploy:
    runs-on: ubuntu-latest
    steps:
      - name: Github Repository Checkout
        uses: actions/checkout@v4

      - name: copy file via ssh
        uses: appleboy/scp-action@v0.1.7
        with:
          host: ${{ secrets.EC2_PIP }}
          username: ubuntu
          key: ${{ secrets.SSH_PRIVATE_KEY }}
          source: server.py
          target: /home/ubuntu

      - name: executing remote ssh commands
        uses: appleboy/ssh-action@v1.2.0
        env:
          AWS_KEYS: ${{ secrets.MYKEYS }}
        with:
          host: ${{ secrets.EC2_PIP }}
          username: ubuntu
          key: ${{ secrets.SSH_PRIVATE_KEY }}
          envs: AWS_KEYS
          script_stop: true
          script: |
             cd /home/ubuntu/cicd-2w
             echo "$AWS_KEYS" > .env
             sudo fuser -k -n tcp 80 || true
             rm server.py
             cp /home/ubuntu/server.py ./
             nohup sudo -E python3 /home/ubuntu/cicd-2w/server.py > /home/ubuntu/cicd-2w/server.log 2>&1 &
             echo "test" >> /home/ubuntu/text.txt

git add . && git commit -m "Deploy CICD2 Final" && git push origin main

4. GitHub Actions with Ansible

name: Run Ansible
on:
  workflow_dispatch:
  push:
    branches:
      - main

jobs:
  run-playbooks:
    runs-on: ubuntu-latest
    steps:
      - name: Github Repository Checkout
        uses: actions/checkout@v4

      - name: Setup Python 3
        uses: actions/setup-python@v5
        with:
          python-version: "3.8"

      - name: Upgrade Pip & Install Ansible
        run: |
          python -m pip install --upgrade pip
          python -m pip install ansible

      - name: Implement the Private SSH Key
        run: |
          mkdir -p ~/.ssh/
          echo "${{ secrets.SSH_PRIVATE_KEY }}" > ~/.ssh/id_rsa
          chmod 600 ~/.ssh/id_rsa

      - name: Ansible Inventory File for Remote host
        run: |
          mkdir -p ./devops/ansible/
          export INVENTORY_FILE=./devops/ansible/inventory.ini
          echo "[my_host_group]" > $INVENTORY_FILE
          echo "${{ secrets.EC2_PIP }}" >> $INVENTORY_FILE

      - name: Ansible Default Configuration File
        run: |
          mkdir -p ./devops/ansible/
          cat <<EOF > ./devops/ansible/ansible.cfg
          [defaults]
          ansible_python_interpreter = '/usr/bin/python3'
          ansible_ssh_private_key_file = ~/.ssh/id_rsa
          remote_user = ubuntu
          inventory = ./inventory.ini
          host_key_checking = False
          EOF

      - name: Ping Ansible Hosts
        working-directory: ./devops/ansible/
        run: |
          ansible all -m ping

      # - name: Run Ansible Playbooks
      #   working-directory: ./devops/ansible/
      #   run: |
      #     ansible-playbook install-nginx.yaml

      # - name: Deploy Python via Ansible
      #   working-directory: ./devops/ansible/
      #   run: |
      #     ansible-playbook deploy-python.yaml

git add . && git commit -m "Deploy Ansible Test" && git push origin main
