study/T101 4기

T101 4기 7주차 두번째

Blue/Green Migration - Link



Blue/Green Upgrade - Amazon EKS Blueprints for Terraform

Blue/Green Migration This directory provides a solution based on EKS Blueprint for Terraform that shows how to leverage blue/green or canary application workload migration between EKS clusters, using Amazon Route 53 weighted routing feature. The workloads

aws-ia.github.io

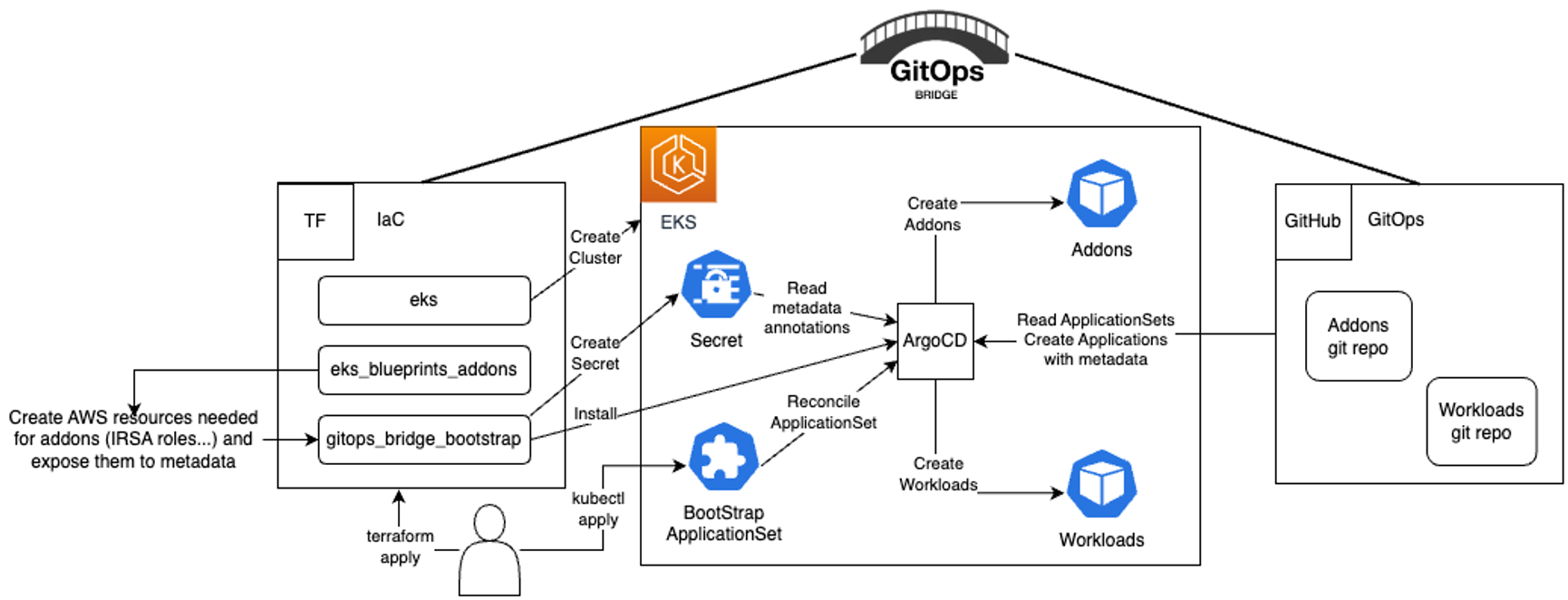

ArgoCD on Amazon EKS - Link

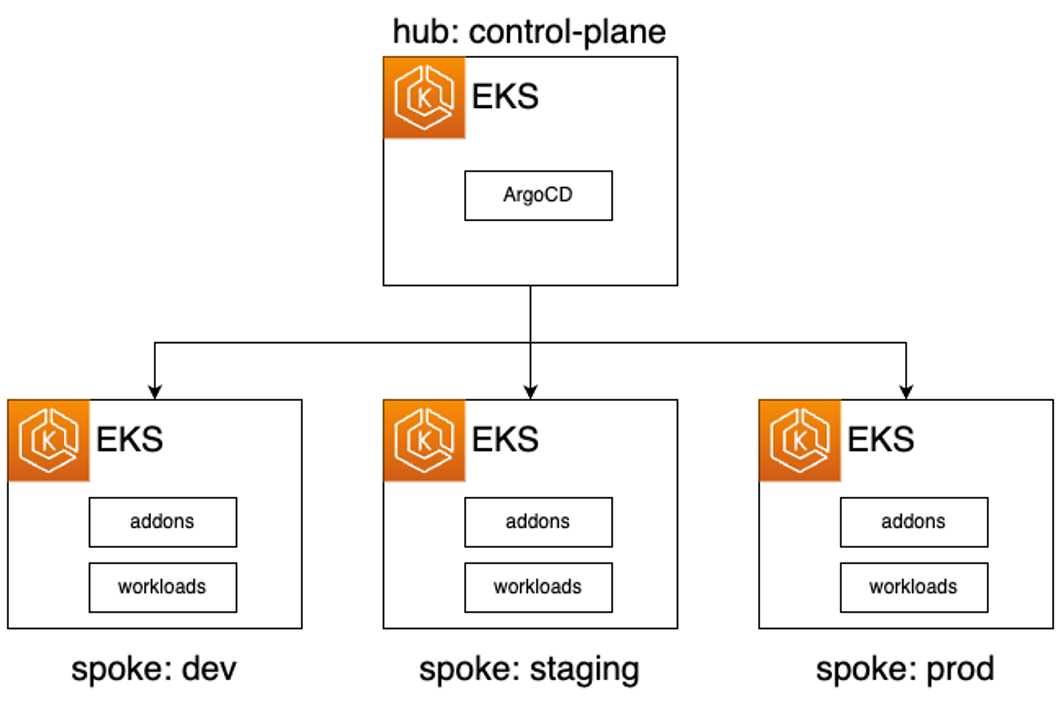

Multi-Cluster centralized hub-spoke topology - Link





2. EKS Workshop

[실습] EKS 배포

  • 사전 준비 : awscli(IAM ‘관리자 수전’ 자격증명), terraform, kubectl - Link
  • 코드 준비 - Github
#
git clone https://github.com/aws-samples/eks-workshop-v2
cd eks-workshop-v2/cluster/terraform

# 각각 .tf 파일 확인해보기



main.tf ← tag 추가

locals {
  tags = {
    created-by = "eks-workshop-v2"
    study      = "t101"
    env        = var.cluster_name
  }
}





Init

terraform init
tree .terraform
cat .terraform/modules/modules.json | jq
tree .terraform/providers/registry.terraform.io/hashicorp -L 2
# VPC 정보 확인
aws ec2 describe-vpcs --filter 'Name=isDefault,Values=false' --output yaml

# vpc 배포 : 3분 소요
terraform apply -target="module.vpc" -auto-approve

# 배포 확인
terraform state list
terraform show
...

# VPC 정보 확인
aws ec2 describe-vpcs --filter 'Name=isDefault,Values=false' --output yaml

# 상세 정보 확인 : VPC/Subnet tag 정보 확인
echo "data.aws_availability_zones.available" | terraform console
terraform state show 'module.vpc.aws_vpc.this[0]'
VPCID=<각자 자신의 VPC ID>
aws ec2 describe-subnets --filters "Name=vpc-id,Values=$VPCID" | jq
aws ec2 describe-subnets --filters "Name=vpc-id,Values=$VPCID" --output text

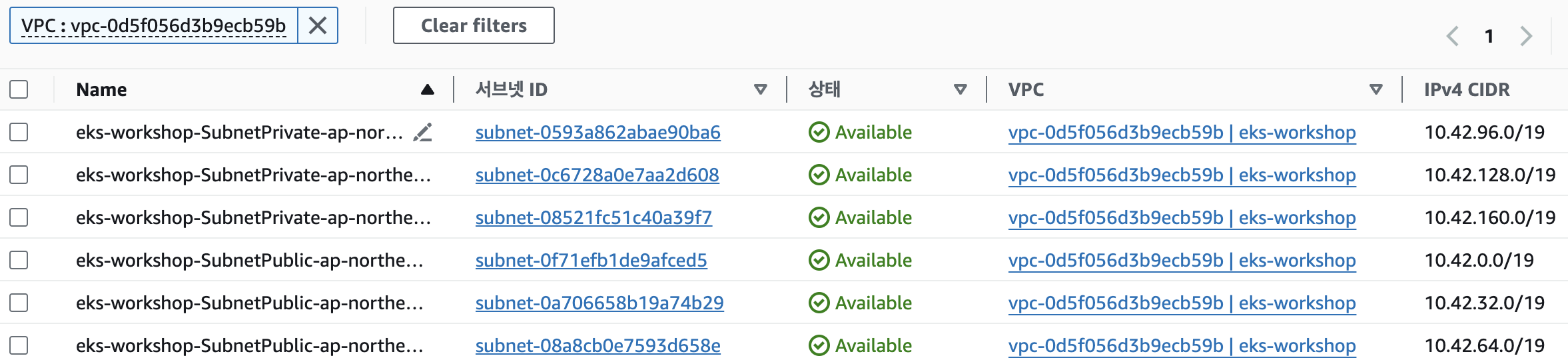

# public 서브넷과 private 서브넷 CIDR 확인
## private_subnets = [for k, v in local.azs : cidrsubnet(var.vpc_cidr, 3, k + 3)]
## public_subnets  = [for k, v in local.azs : cidrsubnet(var.vpc_cidr, 3, k)]
## private_subnets = [for k, v in local.azs : cidrsubnet(local.vpc_cidr, 4, k)]
## public_subnets  = [for k, v in local.azs : cidrsubnet(local.vpc_cidr, 8, k + 48)]
terraform state show 'module.vpc.aws_subnet.public[0]'
terraform state show 'module.vpc.aws_subnet.private[0]'



확인



배포

# EKS 배포 : 11분 소요
terraform apply -auto-approve

# 배포 확인
terraform state list

terraform show

#
terraform output
configure_kubectl = "aws eks --region ap-northeast-2 update-kubeconfig --name t101-karpenter"

# EKS 자격증명
## aws eks --region <REGION> update-kubeconfig --name <CLUSTER_NAME> --alias <CLUSTER_NAME>
aws eks --region ap-northeast-2 update-kubeconfig --name eks-workshop
cat ~/.kube/config

# k8s 클러스터 정보 확인
kubectl cluster-info

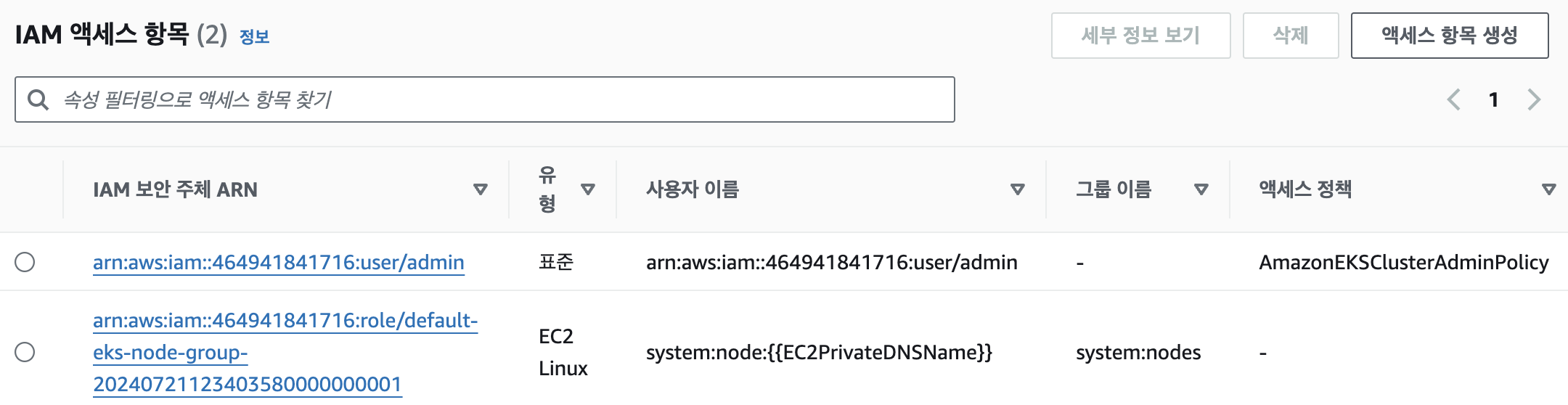

# 각자 자신의 IAM User 의 access entry 생성
ACCOUNT_ID=$(aws sts get-caller-identity --query 'Account' --output text)
MYIAMUSER=<각자 자신의 IAM User>
MYIAMUSER=admin

echo $ACCOUNT_ID $MYIAMUSER
aws eks create-access-entry --cluster-name eks-workshop --principal-arn arn:aws:iam::${ACCOUNT_ID}:user/${MYIAMUSER}
aws eks list-access-entries --cluster-name eks-workshop

# 각자 자신의 IAM User에 AmazonEKSClusterAdminPolicy 연동
aws eks associate-access-policy --cluster-name eks-workshop --principal-arn arn:aws:iam::${ACCOUNT_ID}:user/${MYIAMUSER} \
  --policy-arn arn:aws:eks::aws:cluster-access-policy/AmazonEKSClusterAdminPolicy --access-scope type=cluster

aws eks list-associated-access-policies --cluster-name eks-workshop --principal-arn arn:aws:iam::${ACCOUNT_ID}:user/${MYIAMUSER} | jq
aws eks describe-access-entry --cluster-name eks-workshop --principal-arn arn:aws:iam::${ACCOUNT_ID}:user/${MYIAMUSER} | jq

# (참고) context name 변경
kubectl config rename-context "arn:aws:eks:ap-northeast-2:$(aws sts get-caller-identity --query 'Account' --output text):cluster/eks-workshop" "T101-Lab"


# k8s 클러스터, 노드, 파드 정보 확인
kubectl cluster-info
kubectl get node
kubectl get nodes -L node.kubernetes.io/instance-type -L topology.kubernetes.io/zone
NAME                                               STATUS   ROLES    AGE   VERSION               INSTANCE-TYPE   ZONE
ip-10-42-124-1.ap-northeast-2.compute.internal     Ready    <none>   22m   v1.30.0-eks-036c24b   m5.large        ap-northeast-2a
ip-10-42-134-162.ap-northeast-2.compute.internal   Ready    <none>   22m   v1.30.0-eks-036c24b   m5.large        ap-northeast-2b
ip-10-42-167-206.ap-northeast-2.compute.internal   Ready    <none>   22m   v1.30.0-eks-036c24b   m5.large        ap-northeast-2c


# 상세 정보 확인
terraform state list
terraform state show 'module.eks.aws_ec2_tag.cluster_primary_security_group["study"]'
terraform state show 'module.eks.aws_eks_addon.before_compute["vpc-cni"]'
terraform state show 'module.eks.aws_eks_cluster.this[0]'
terraform state show 'module.eks.aws_iam_openid_connect_provider.oidc_provider[0]'
terraform state show 'module.eks.aws_iam_policy.cluster_encryption[0]'
terraform state show 'module.eks.time_sleep.this[0]'
terraform state show 'module.eks.module.eks_managed_node_group["default"].aws_eks_node_group.this[0]'
terraform state show 'module.eks.module.eks_managed_node_group["default"].aws_iam_role.this[0]'
terraform state show 'module.eks.module.eks_managed_node_group["default"].aws_launch_template.this[0]'
terraform state show 'module.eks.module.eks_managed_node_group["default"].module.user_data.null_resource.validate_cluster_service_cidr'
terraform state show 'module.eks.module.kms.aws_kms_key.this[0]'
terraform state show 'module.eks.module.kms.aws_kms_alias.this["cluster"]'





확인

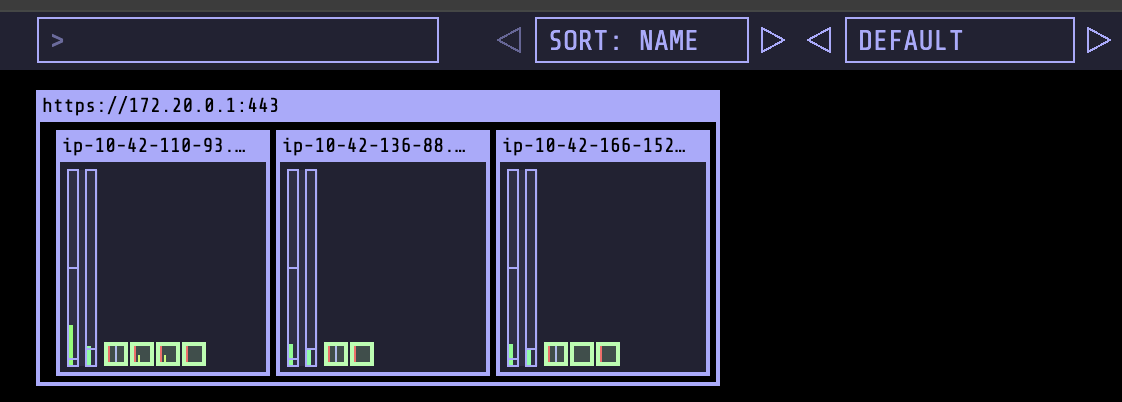

kube-ops-view 설치

# helm 배포
helm repo add geek-cookbook https://geek-cookbook.github.io/charts/
helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set env.TZ="Asia/Seoul" --namespace kube-system

# 포트 포워딩
kubectl port-forward deployment/kube-ops-view -n kube-system 8080:8080

# 접속 주소 확인 : 각각 1배, 1.5배, 3배 크기
echo -e "KUBE-OPS-VIEW URL = http://localhost:8080"
echo -e "KUBE-OPS-VIEW URL = http://localhost:8080/#scale=1.5"
echo -e "KUBE-OPS-VIEW URL = http://localhost:8080/#scale=3"





삭제 : 9분 소요

# kube-ops-view 삭제
helm uninstall kube-ops-view -n kube-system

# 삭제 : vpc 삭제가 잘 안될 경우 aws 콘솔에서 vpc 수동 삭제 -> vnic 등 남아 있을 경우 해당 vnic 강제 삭제 : 9분 소요
terraform destroy -auto-approve

# VPC 삭제 확인 :
aws ec2 describe-vpcs --filter 'Name=isDefault,Values=false' --output yaml

# kubeconfig 삭제
rm -rf ~/.kube/config
